YJ41H antibiotic stop valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
YJ41H antibiotic globe valve is mainly used in bio-fermentation, pharmaceutical and beer fermentation, amino acid fermentation, bio-pesticide fermentation, bio-fertilizer fermentation, various antibiotic fermentation, biological, biochemical, chemical and pharmaceutical materials, water, steam, cold control and other fields, the bottom can be opened according to customer needs, high-temperature resistance. The service life is long and no dead ends reach zero leakage level.
Product features
1., it has strong bactericidal and detoxification function to prevent bacteria from being infected.
2. the gasket is made of high temperature resistant PTFE composite material. (maximum temperature up to 120 degrees Celsius)
3. the gasket, the middle sealing ring of the valve body and the stem packing are all made of high quality PTFE material. Long life and corrosion resistance to ensure no internal and external leakage.
4. streamlined flow path makes the pressure loss small.
5. the gasket can be replaced, the disassembly is more convenient and the maintenance cost is low.
Design and manufacturing standards for antibiotic shut-off valves
Design and manufacture: GB/T12235
Flange size: JB/T79.1
Structure length: GB/T12221
Inspection and testing: JB/T9092
Main performance specifications for antibiotic shut-off valves
公稱壓力 | 1.6 MPa | |
試驗壓力 | 強度試驗 | 2.4 MPa |
密封試驗 | 1.76 MPa | |
上密封試驗 | 1.76 MPa | |
氣密封試驗 | 0.6 MPa | |
MAX工作溫度 | 120 ℃ | |
適用介質(zhì) | 水、蒸汽、食品等 | |

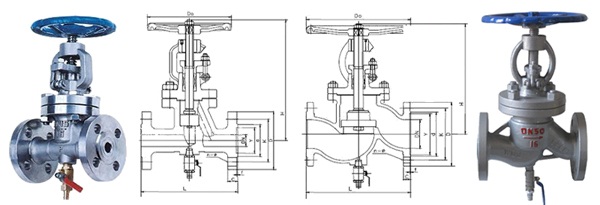

構(gòu)圖.jpg)
公稱壓力 PN(MPa) | 公稱通徑 DN（mm） | 尺寸（mm） | |||||||||
L | D | K | d | Y | C | f | n-φ | H | D0 | ||
1.6 | 10 | 130 | 90 | 60 | 40 | - | 14 | 2 | 4-14 | 163 | 100 |
15 | 130 | 95 | 65 | 45 | - | 14 | 2 | 4-14 | 163 | 100 | |
20 | 150 | 105 | 75 | 55 | - | 14 | 2 | 4-14 | 165 | 100 | |
25 | 160 | 115 | 85 | 65 | - | 14 | 2 | 4-14 | 198 | 125 | |
32 | 180 | 135 | 100 | 78 | - | 16 | 2 | 4-18 | 225 | 160 | |
40 | 200 | 145 | 110 | 85 | - | 16 | 3 | 4-18 | 330 | 200 | |
50 | 230 | 160 | 125 | 100 | - | 16 | 3 | 4-18 | 350 | 240 | |
65 | 290 | 180 | 145 | 120 | - | 18 | 3 | 4-18 | 400 | 280 | |
80 | 310 | 195 | 160 | 135 | - | 20 | 3 | 8-18 | 405 | 280 | |
100 | 350 | 215 | 180 | 155 | - | 20 | 3 | 8-18 | 415 | 320 | |
125 | 400 | 245 | 210 | 185 | - | 22 | 3 | 8-18 | 460 | 360 | |
150 | 480 | 280 | 240 | 210 | - | 24 | 3 | 8-23 | 510 | 400 | |
200 | 600 | 335 | 295 | 265 | - | 26 | 3 | 14-23 | 710 | 400 | |
2.5 | 10 | 130 | 90 | 60 | 40 | - | 16 | 2 | 4-14 | 163 | 100 |
15 | 130 | 95 | 65 | 45 | - | 16 | 2 | 4-14 | 163 | 100 | |
20 | 150 | 105 | 75 | 55 | - | 16 | 2 | 4-14 | 165 | 100 | |
25 | 160 | 115 | 85 | 65 | - | 16 | 2 | 4-14 | 198 | 125 | |
32 | 180 | 135 | 100 | 78 | - | 18 | 2 | 4-18 | 225 | 160 | |
40 | 200 | 145 | 110 | 85 | - | 18 | 3 | 4-18 | 330 | 200 | |
50 | 230 | 160 | 125 | 100 | - | 20 | 3 | 4-18 | 350 | 240 | |
65 | 290 | 180 | 145 | 120 | - | 22 | 3 | 8-18 | 400 | 280 | |
80 | 310 | 195 | 160 | 135 | - | 22 | 3 | 8-18 | 405 | 280 | |
100 | 350 | 230 | 190 | 160 | - | 24 | 3 | 8-23 | 415 | 320 | |
125 | 400 | 270 | 220 | 188 | 28 | 3 | 8-25 | 460 | 360 | ||
150 | 480 | 300 | 250 | 218 | - | 30 | 3 | 8-25 | 510 | 400 | |
200 | 600 | 360 | 310 | 278 | - | 34 | 3 | 12-25 | 710 | 400 | |
